Brand Name : Jindun
Model Number : JBQ10/3.6-K
Certification : ISO
Place of Origin : China
MOQ : 1
Price : USD
Payment Terms : T/T
Supply Ability : 300/year
Delivery Time : 3months
Dimension : 610×560×610mm
Net weight : ≤67kg
Highest lift : 150m
Rated pressure : 1.0Mpa
Cylinders : Double cylinder
Water pump : Single stage
flow rated : 220L/min
suction depth : 7m
Single stage/7800RPM High lift forest Portable fire pump 14HP KOHLER CH440 HONDA GX390
| Dimension | 610×560×610mm |
| Weight | ≤67kg |
| Rated flow rate | 220L/min |
| Lift | 150m |
| Rated pressure | 1.0Mpa |
| Inlet pipe diameter | Φ65mm |
| Outlet pipe diameter | φ40mm |
| Water gun nozzle diameter | φ12mm |
| Connection method | Threaded type |
| Maximum suction depth | 7m |
| Water diversion time | ≤35s(Exhaust diversion) |
| Startup mode | Hand / electric start |
| Engine model | 14HP, KOHLER CH440 HONDA GX390 |
| Water pump | Single stage/7800RPM |

|
|

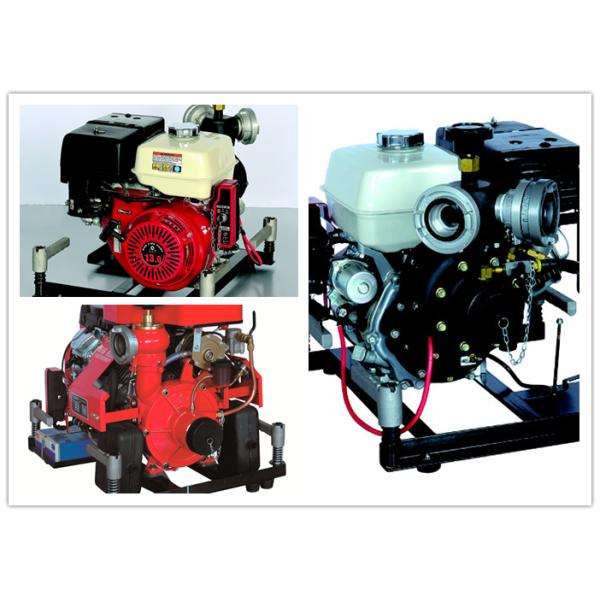

Single Stage Portable Fire Fighting Pumps Threaded 7800rpm High Lift Forest Images |
